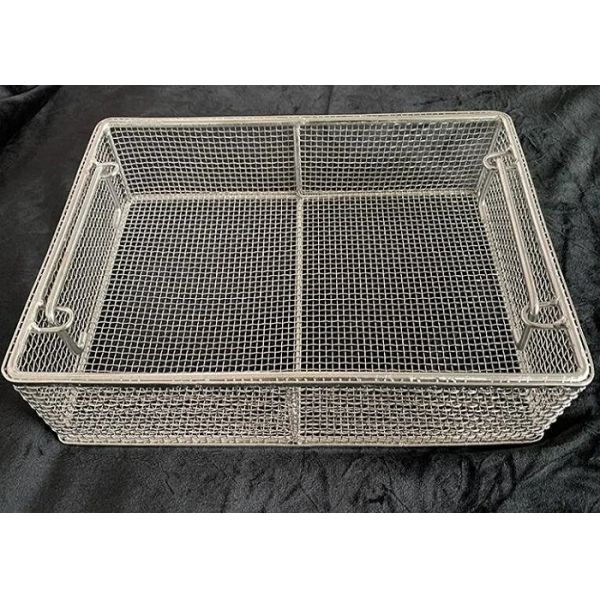

Stainless Steel AISI314 Woven Wire Mesh Used as Heat Treatment Baskets
For Heat-Treatment Industry customers, we could supply a special mesh with heat resistance up to 1100 C°. This mesh would be made with stainless steel, or related alloys, which is with some special content to improve its high-temperature oxidation and abrasion resistance.
Stainless Steel AISI314 is the same alloy as the stainless steel 310 series, but with higher silicon content. The higher silicon content, with about 1.5-3%, improves its high-temperature oxidation resistance and allows it to work well with maximum resistance during carburization. Similar to AISI310, AISI314 also has higher nickel content than AISI309 and provides good strength and oxidation resistance at temperatures up to 1100°C. Anyway, AISI314 stainless steel would become brittle, if it works for a long time in the environment with temperature exposure within 660°C – 750°C. AISI314 wire mesh is often used in heat exchangers and furnaces.
| AISI314 Stainless Steel - Chemical Compositions |
| Alloy | C | Mn | P | S | Si | Cr | Ni |
| 314 | 0 - 0.25 | 0 - 2 | 0 - 0.045 | 0 - 0.03 | 1.5 - 3 | 23 - 26 | 19 - 22 |
Besides, we could also offer the wire mesh with the following materials:
300/400 series stainless
600 series Inconel
Brass
Bronze
High Carbon Steel
Nichrome
Super Duplex
These materials could also work well under a high-temperature environment, but each has its own best-use range.
Here are some very commonly used woven wire mesh specifications for Heat Treatment Baskets, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.
| Commonly Used Mesh Specifications for Heat Treatment Baskets |
| Mesh | Wire Dia. Mm | Opening mm | Opening Area % |
| 2 x 2 | 1.40 | 11.33 | 79.6 |
| 3 x 3 | 1.10 | 7.42 | 76.7 |
| 4 x 4 | 0.90 | 5.46 | 74 |
| 5 x 5 | 0.81 | 4.27 | 70.6 |
| 6 x 6 | 0.71 | 3.52 | 69.6 |
| 7 x 7 | 0.71 | 2.92 | 64.8 |
| 8 x 8 | 0.64 | 0.25 | 64 |
| 9 x 9 | 0.60 | 2.24 | 62.7 |
| 10 x 10 | 0.51 | 0.20 | 64 |
| 11 x 11 | 0.51 | 1.80 | 61 |
| 12 x 12 | 0.46 | 1.66 | 61.5 |
| 14 x 14 | 0.43 | 1.38 | 58.1 |
| 16 x 16 | 0.41 | 1.18 | 55.4 |
| 18 x 18 | 0.38 | 1.03 | 53.3 |
| 20 x 20 | 0.36 | 0.91 | 51.8 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.
For your reference, some photos of our products and factory are listed here, please check.
